SUMEICHI High Quality Aluminum Weld-on Fittings 6AN AN6 8AN AN8 AN10 10AN
Aluminum Weld Bung
minimum order
1 piece
Quantity:
US$0.44 - US$0.89
/ piece
- Pipe Class:Not Rated
- Thread Types:AN
- Connectivity:Male
- Pressure:Low Pressure
- Application:building water supply and drainage, fire protection systems, natural gas pipeline installation, natural gas & petroleum industry, natural gas transportation, water supply and drainage systems
- Surface Treatment:Anodized
- Pipe Features:No additional Features
- Technic:Casting
- shape:Equal
- System of Measurement:inch
- head code:Hexagon
- Mounting hole diameter:AN6
- customized support:ODM, OEM
- warranty:1 YEAR
- model number:Aluminum Weld Bung
- place of origin:Guangdong, China
- brand name:SUMEICHI
- Selling Units:Single item
- Single package size:20X20X5 cm
- Single gross weight:0.5 kg
SUMEICHI High Quality Aluminum Weld-on Fittings 6AN AN6 8AN AN8 AN10 10AN

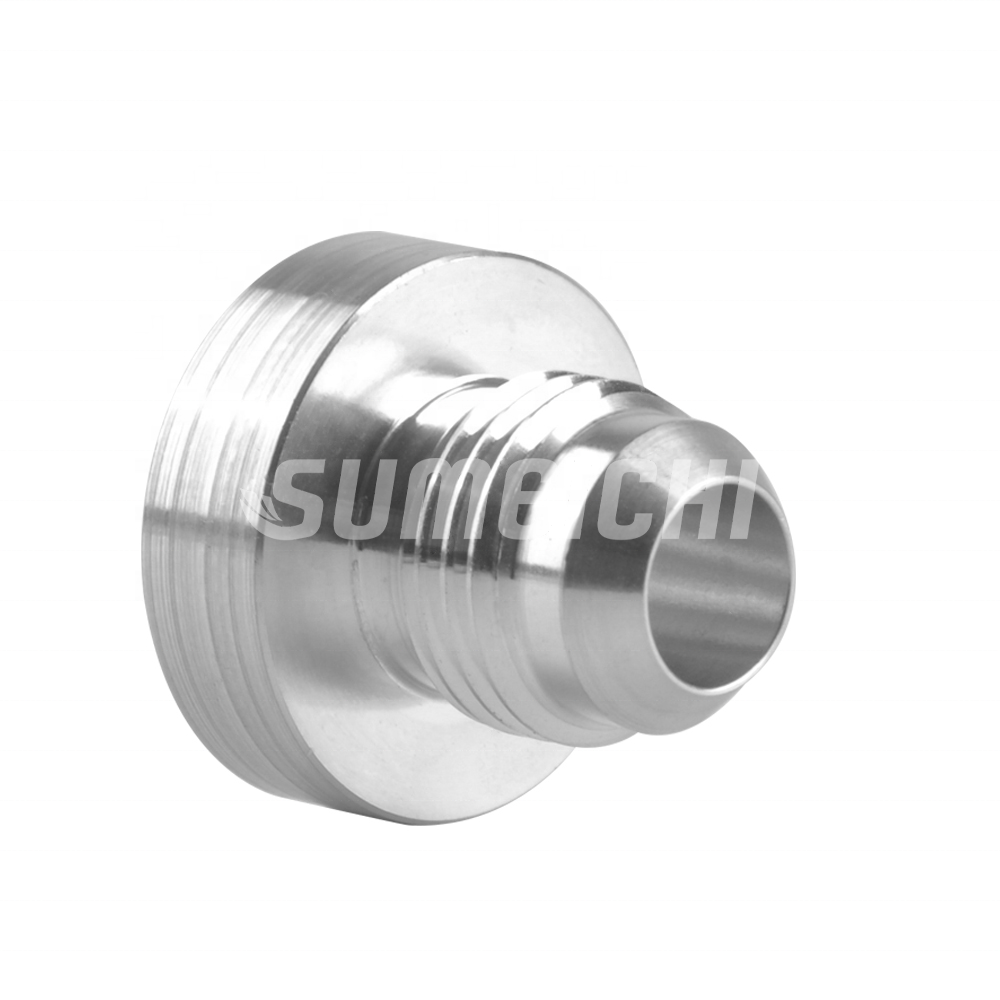

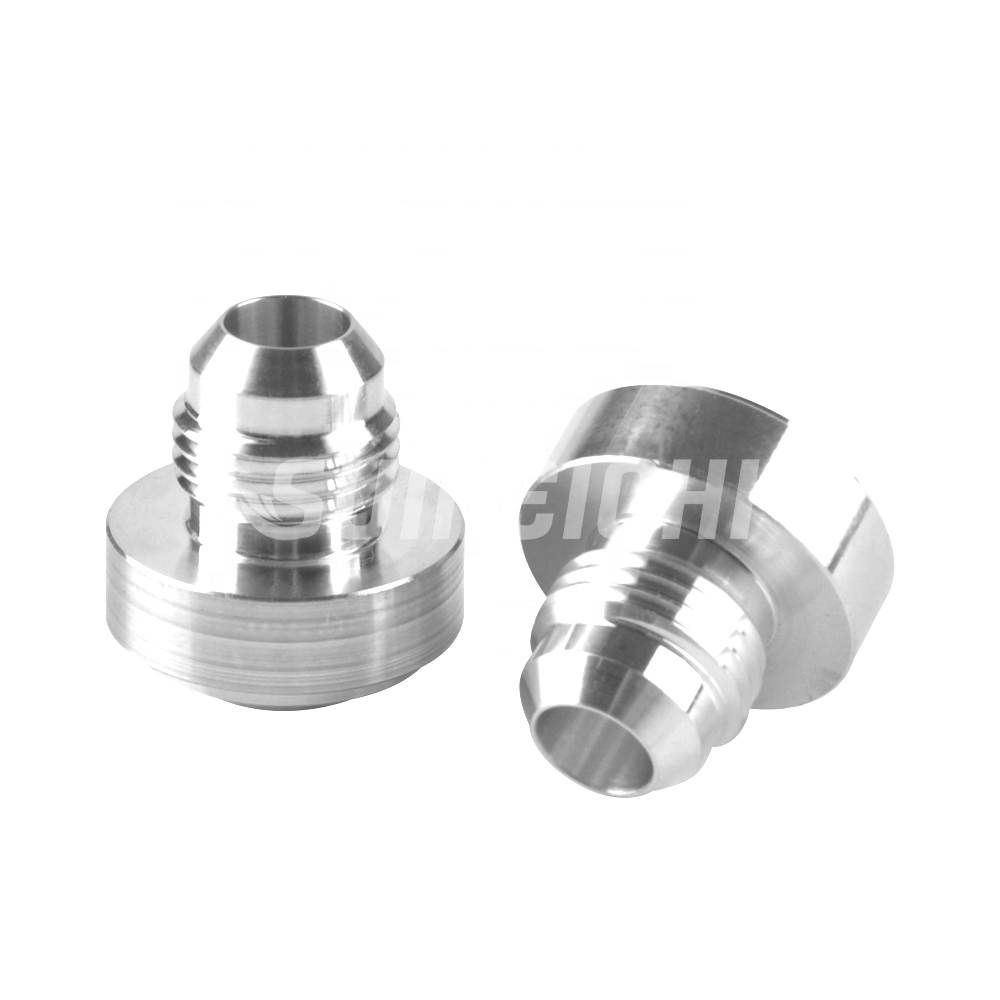

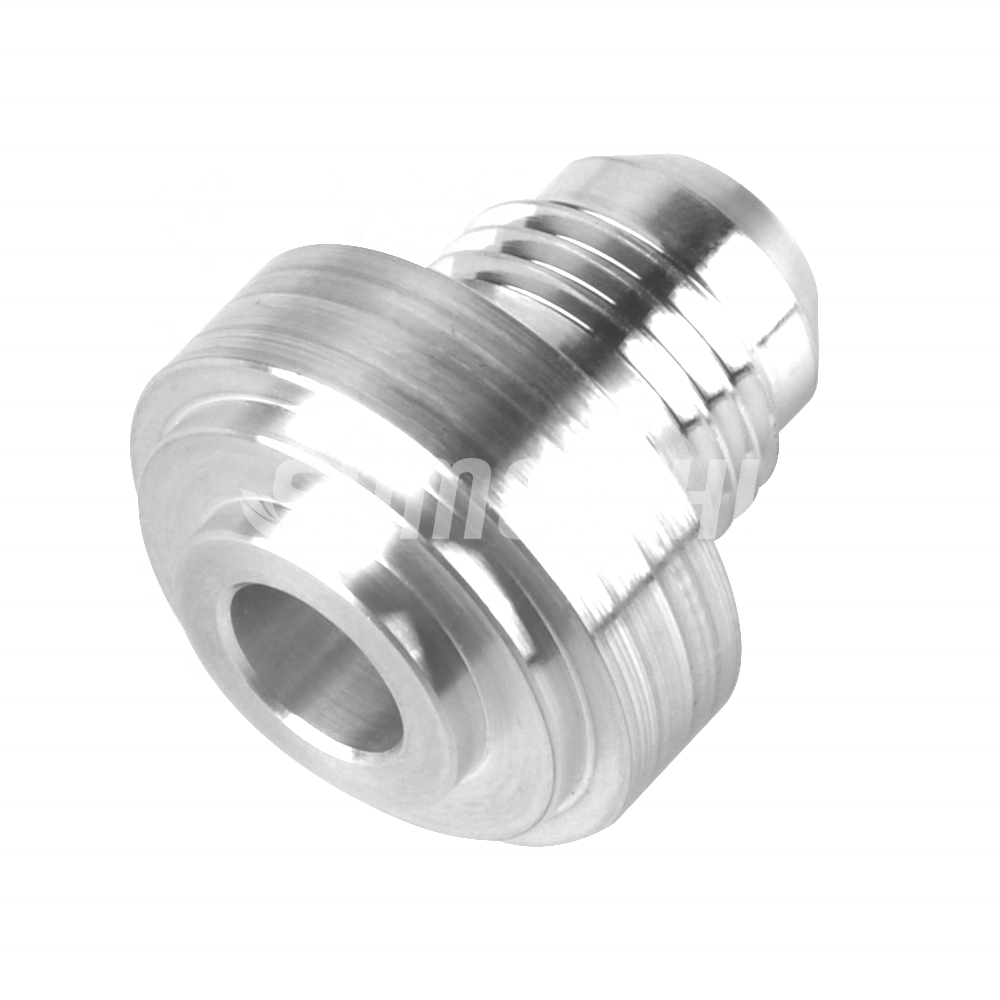

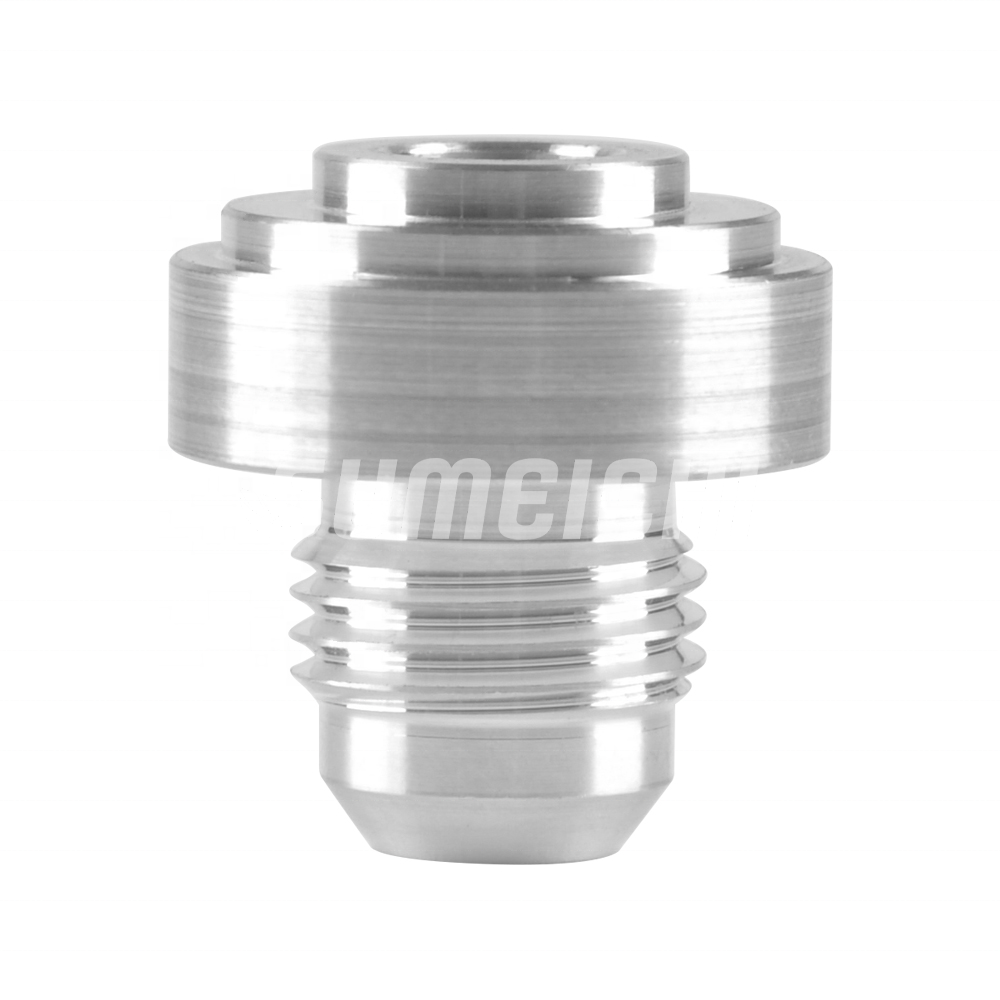

6AN WELD ON FITTING
* Size: Thread size of 6an weld bung is 9/16-18 UNF.
* Material: Made of aluminum alloy 6061-T6.
* Sealing: The AN thread of the flare is sealed by a 37 degree angle.
* Parameter: Max pressure: 1000PSI(68.94bar), Operating temperature: - 65℉ to 252℉.
* Note: Can not be screwed too tightly when using, otherwise it will deform the 37 degree valve seat and cause leakage.
* Material: Made of aluminum alloy 6061-T6.
* Sealing: The AN thread of the flare is sealed by a 37 degree angle.
* Parameter: Max pressure: 1000PSI(68.94bar), Operating temperature: - 65℉ to 252℉.
* Note: Can not be screwed too tightly when using, otherwise it will deform the 37 degree valve seat and cause leakage.
Q1: Are you factory?
Yes, we have about 20 years' experience in manufacturing, supporting OEM & ODM.
Q2: What's your normal MOQ?
Our moq is 50 pieces per item.
Q3: May I know the lead time?
We have large inventory in warehouse, so that we can ship the goods in 3 days for small order. As for mass order, the lead time is 10-20 days.
Q4: Can I get sample to test first?
Sure, we offer free sample for you to test, but the shipping cost is on your side.
Q5: Do you offer branding services?
Yes, lasering brand logo is free. If you need branding packages, the fee will be on your side.
