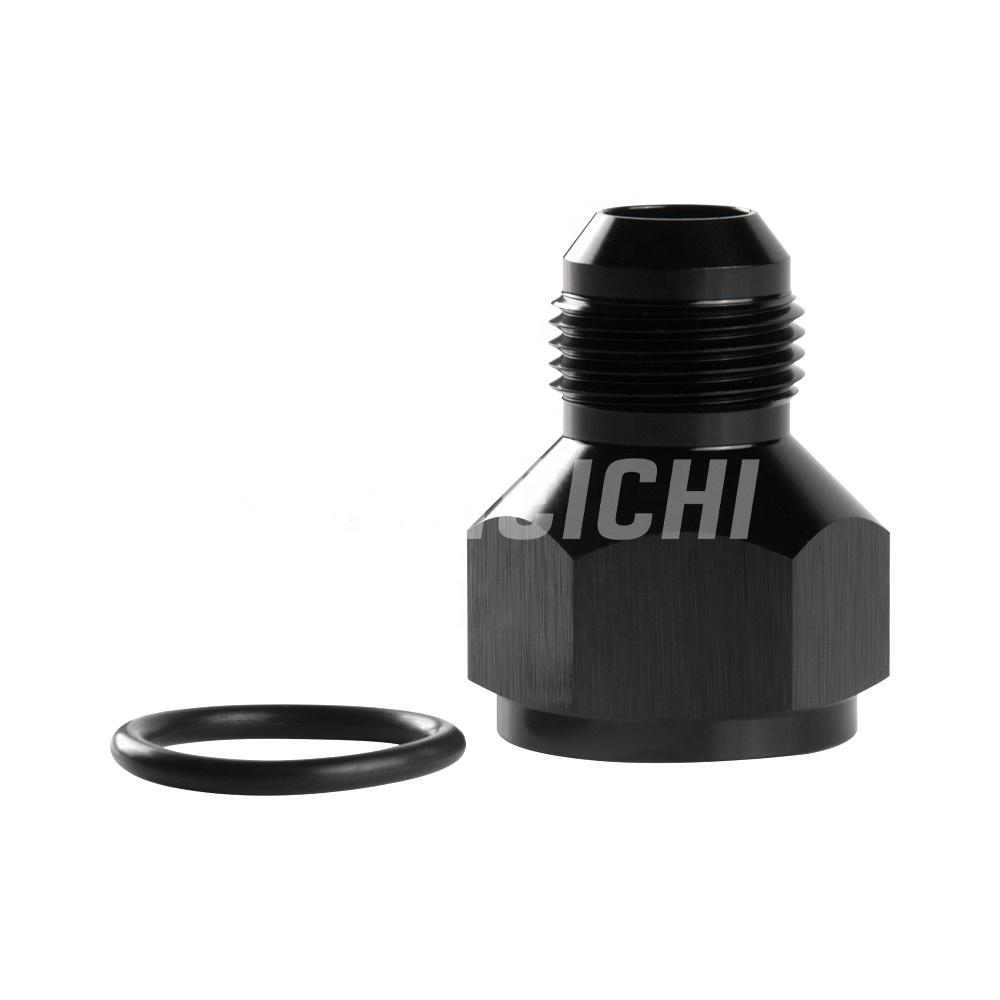

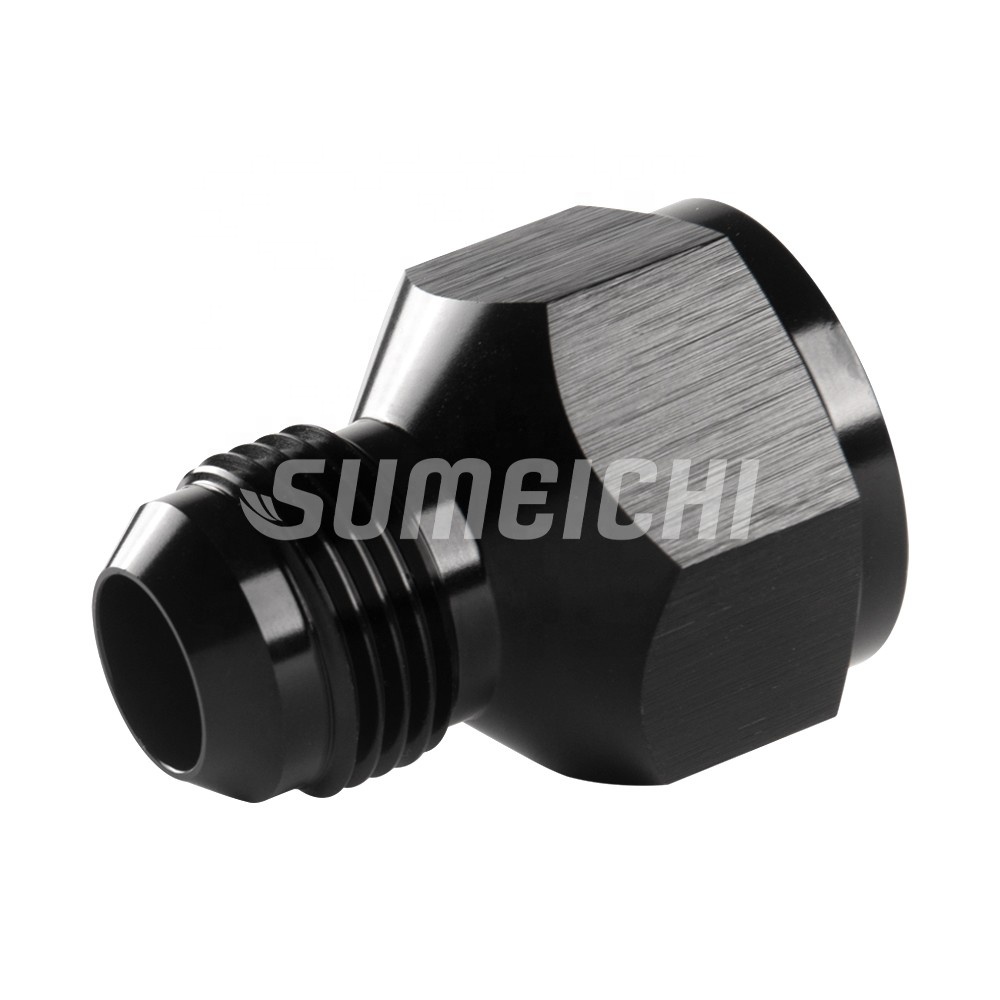

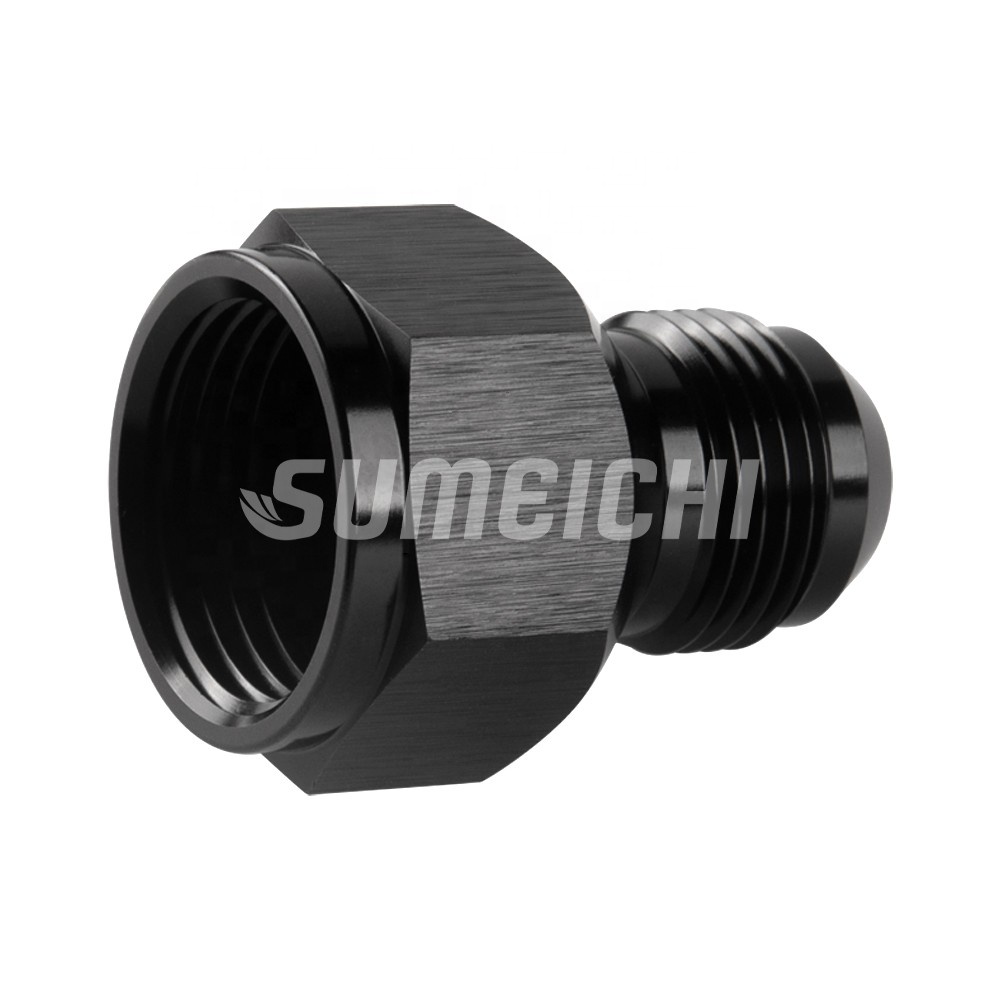

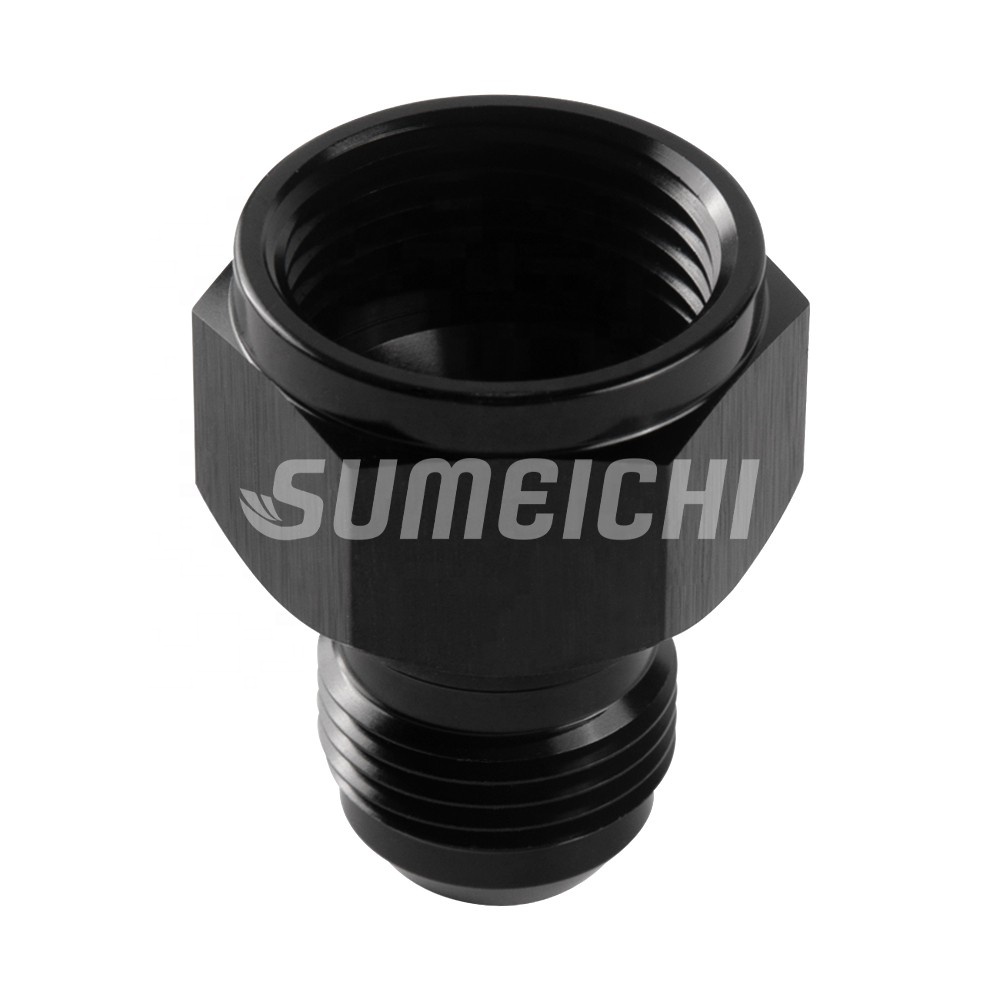

SUMEICHI Female ORB12 to Male An10 Straight Reducer Hose Fitting Racing Parts

SMCAN950-12-10

AN10 female adapter: internal threads, lightweight aluminum, leak-proof flare seal, high-flow. Ideal for fuel/oil systems. Corrosion-resistant, reliable, durable, easy install.

minimum order

1 piece

Quantity:

$2.97 - $2.97 / piece

Contact Now

add to cart

AN10 female adapter: internal threads, lightweight aluminum, leak-proof flare seal, high-flow. Ideal for fuel/oil systems. Corrosion-resistant, reliable, durable, easy install.

Pipe Class:Not Rated
Connectivity:Female
Pressure:High Pressure
Surface Treatment:Anodized
Technic:CNC Machining
shape:Round
System of Measurement:inch
head code:Hexagon
Mounting hole diameter:please contact for details
customized support:OEM, ODM
warranty:1 year
model number:SMCAN950-12-10
place of origin:Guangdong, China
brand name:SUMEICHI
Material:Aluminum Alloy
Application:Oil
Standard:International Standard
Packing:Plastic Bag+Carton
Sample:Sample Freely
MOQ:50pcs
Brand:SUMEICHI
Service:24 Hours Online
Technology:CNC
OEM:Provide OEM Services
Selling Units:Single item
Single volume:0 cm³
Single gross weight:0.0 kg

SUMEICHI Female ORB12 to Male An10 Straight Reducer Hose Fitting Racing Parts

Female ORB12 to Male An10

* Size: Female AN12 to Male AN10, the thread size of 12an is 1 1/16-12 UNF, the thread size of 10an is 7/8-14 UNF.

* Parameter: Max working pressure: 1500PSI.Temperature range: -40°F-250°F.

* Material: Made of aluminum alloy 6061-T6, anodized black surface.

* Sealing: The AN side is sealed by a 37 degree angle.

* Application: Widely used in fuel system, cooling system, LS swap etc.

PART NO.	ORB	AN
SMCAN950-04-03	Female ORB4	Male AN3
SMCAN950-06-03	Female ORB6	Male AN3
SMCAN950-06-04	Female ORB6	Male AN4
SMCAN950-08-06	Female ORB8	Male AN6
SMCAN950-10-08	Female ORB10	Male AN8
SMCAN950-10-06	Female ORB10	Male AN6
SMCAN950-12-08	Female ORB12	Male AN8
SMCAN950-12-10	Female ORB12	Male AN10
SMCAN950-16-12	Female ORB16	Male AN12
