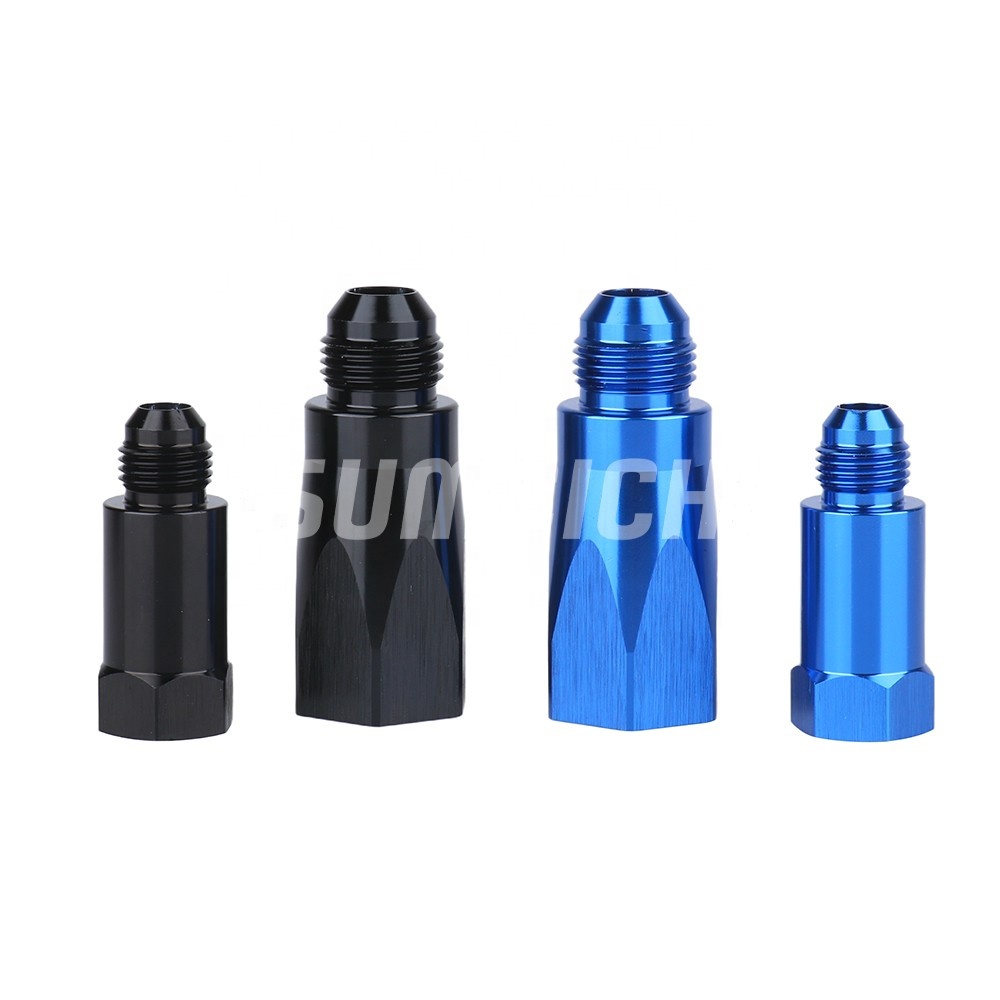

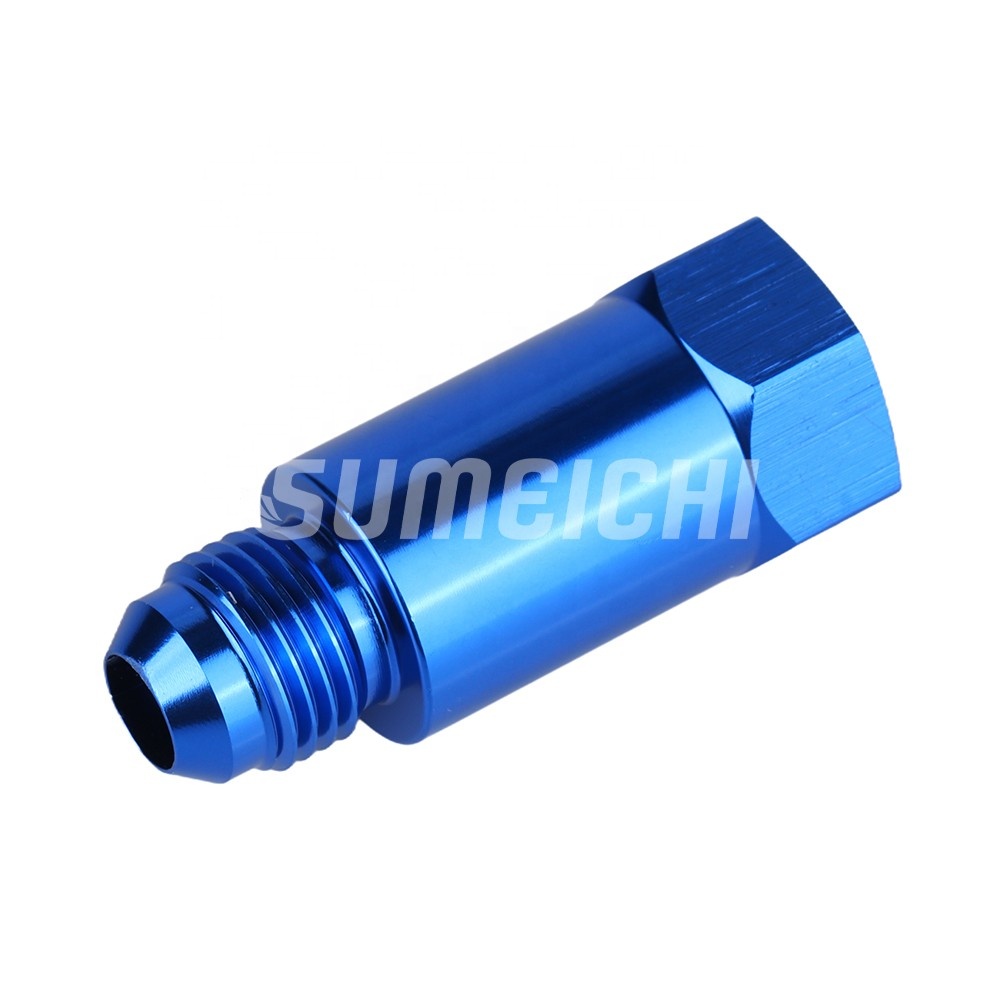

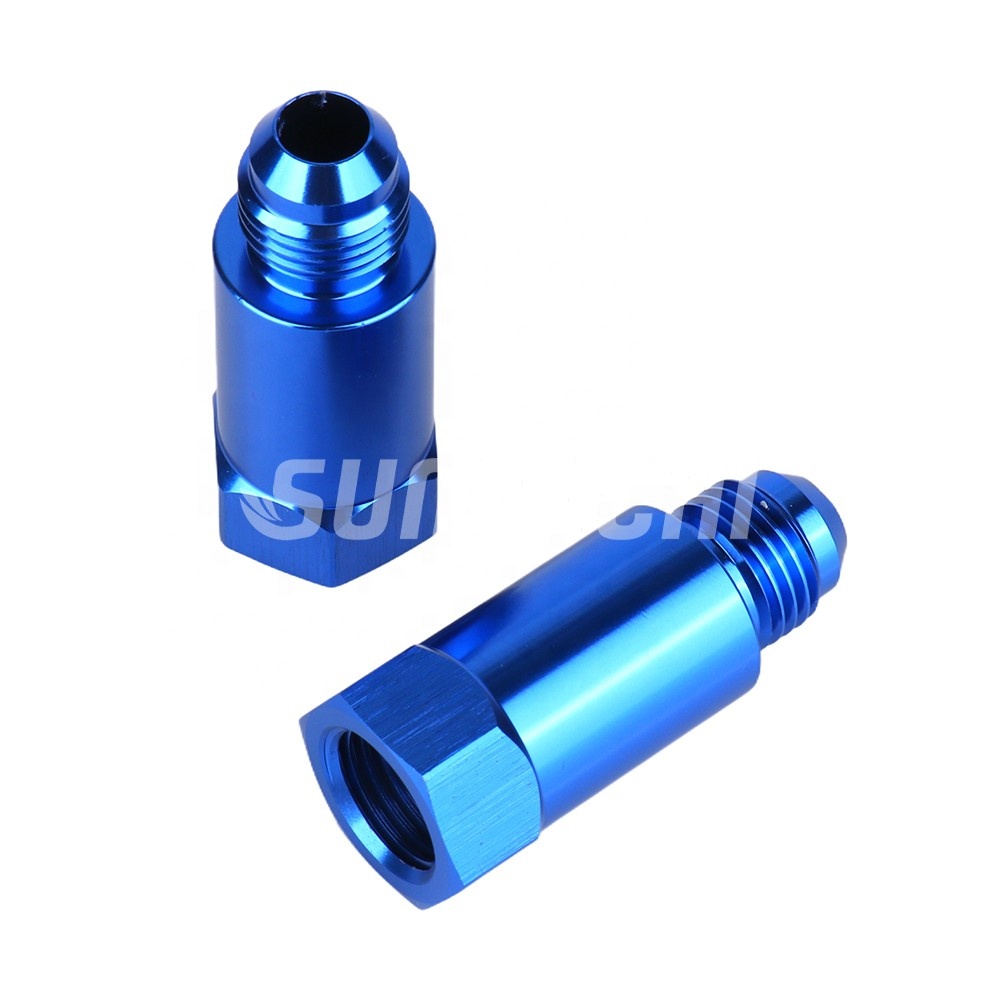

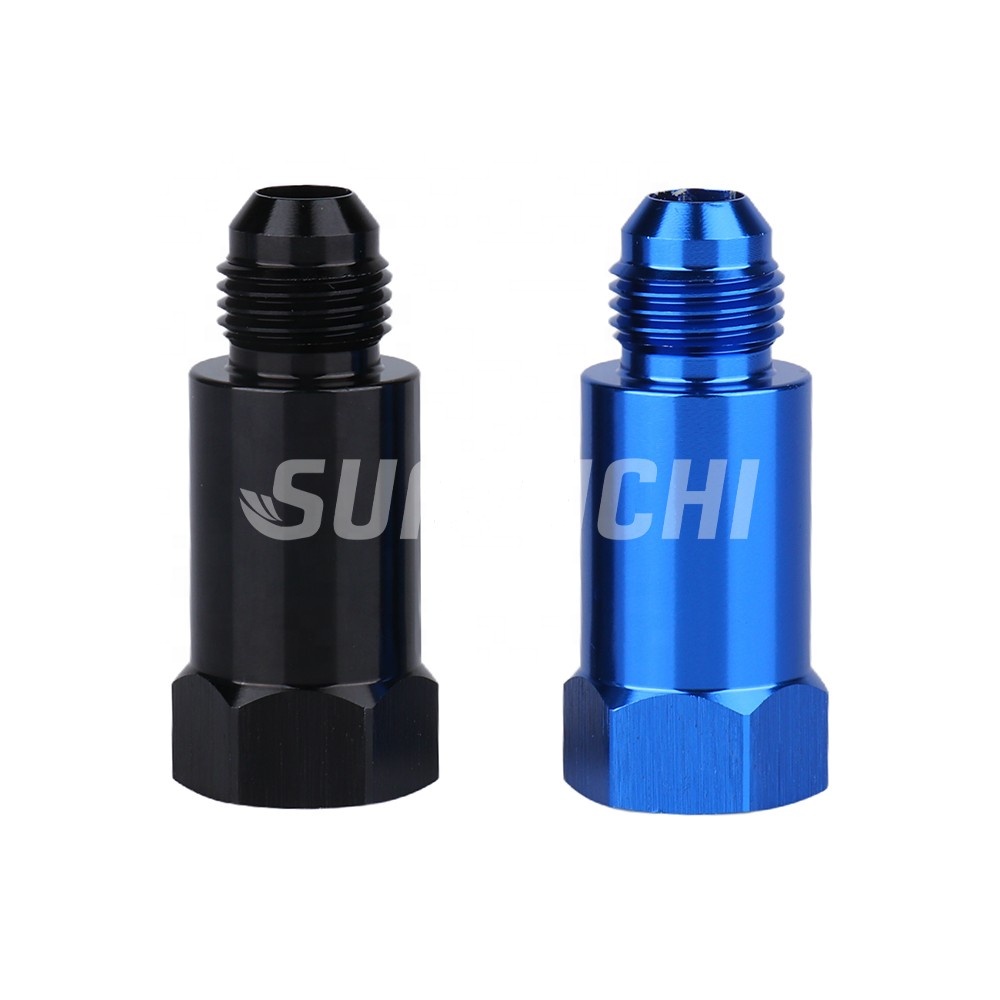

SUMEICHI Racing Parts Roll Over Valves AN6 AN8 Aluminum an Flare Light Weight Tank Mounted Fitting

SMCAN614-06

Rollover valves: prevent fuel spillage during vehicle rollovers, spring-loaded shut-off, compact design. Essential for safety in racing and off-road fuel systems.

minimum order

1 piece

Quantity:

$3.92 - $3.92 / piece

Contact Now

add to cart

Rollover valves: prevent fuel spillage during vehicle rollovers, spring-loaded shut-off, compact design. Essential for safety in racing and off-road fuel systems.

Pipe Class:Not Rated
Connectivity:Female
Pressure:High Pressure
Surface Treatment:Anodized
Pipe Features:No additional Features
Technic:CNC Machining
shape:Straight
System of Measurement:inch
head code:Hexagon
Mounting hole diameter:Please contact for detail
Overall Length:Please contact for detail
customized support:OEM, ODM
warranty:1 year
model number:SMCAN614-06
place of origin:Guangdong,China
brand name:SUMEICHI
Height:Please contact for detail
Material:Aluminum Alloy
Application:Oil
Standard:International Standard
Packing:Plastic Bag+Carton
MOQ:50pcs
Sample:Sample Available
Advantage:High Quality and Fast Delivery
Delivery time:7-10 Days
Service:24 Hours Online
Color:Customized Color
Selling Units:Single item
Single volume:0 cm³
Single gross weight:0.0 kg

SUMEICHI Racing Parts Roll Over Valves AN6 AN8 Aluminum an Flare Light Weight Tank Mounted Fitting

Roll Over valves work by allowing air into the tank to replace the fuel being used, air out of the tank due to heat expansion and a positive shut off to prevent fuel escape due to the vehicle rolling over. These are made from billet aluminium and anodized to protect it. It has a ball bearing inside the bottom half that allows the air to breathe easily without any restriction. However, if the tank is turned upside down the ball bearing drops to the top of the fitting effectively cutting off the exit. These bolt in roll over valves are designed to install in to a fuel tank or cell as a bulkhead style fitting.
