SUMEICHI Straight Male AN10 Fitting to ORB10 Female Reducer Adapter

SMCAN952-10

ORB10 fitting: O-ring boss seal, leak-proof, high-pressure rated, durable steel/aluminum. Ideal for hydraulic and fluid systems. Reliable, vibration-resistant, easy install.

minimum order

1 piece

Quantity:

$2.19 - $2.19 / piece

Contact Now

add to cart

ORB10 fitting: O-ring boss seal, leak-proof, high-pressure rated, durable steel/aluminum. Ideal for hydraulic and fluid systems. Reliable, vibration-resistant, easy install.

Pipe Class:Not Rated
Thread Types:UNF
Connectivity:Hose
Pressure:High Pressure
Application:Automotive Repair
Surface Treatment:Anodized
Pipe Features:No additional Features
Technic:CNC Machining
shape:Straight
System of Measurement:inch
head code:Hexagon
Mounting hole diameter:please contact for details
customized support:OEM, ODM
warranty:1 year
model number:SMCAN952-10
place of origin:Guangdong, China
brand name:SUMEICHI
Material:Aluminum
Application:Oil
Standard:International Standard
MOQ:50pcs
Sample:Sample Freely
OEM:Provide OEM Services
Advantage:High-quality
Packing:Plastic Bag+Carton
Service:24 Hours Online
Brand:SUMEICHI
Selling Units:Single item
Single volume:0 cm³
Single gross weight:0.0 kg

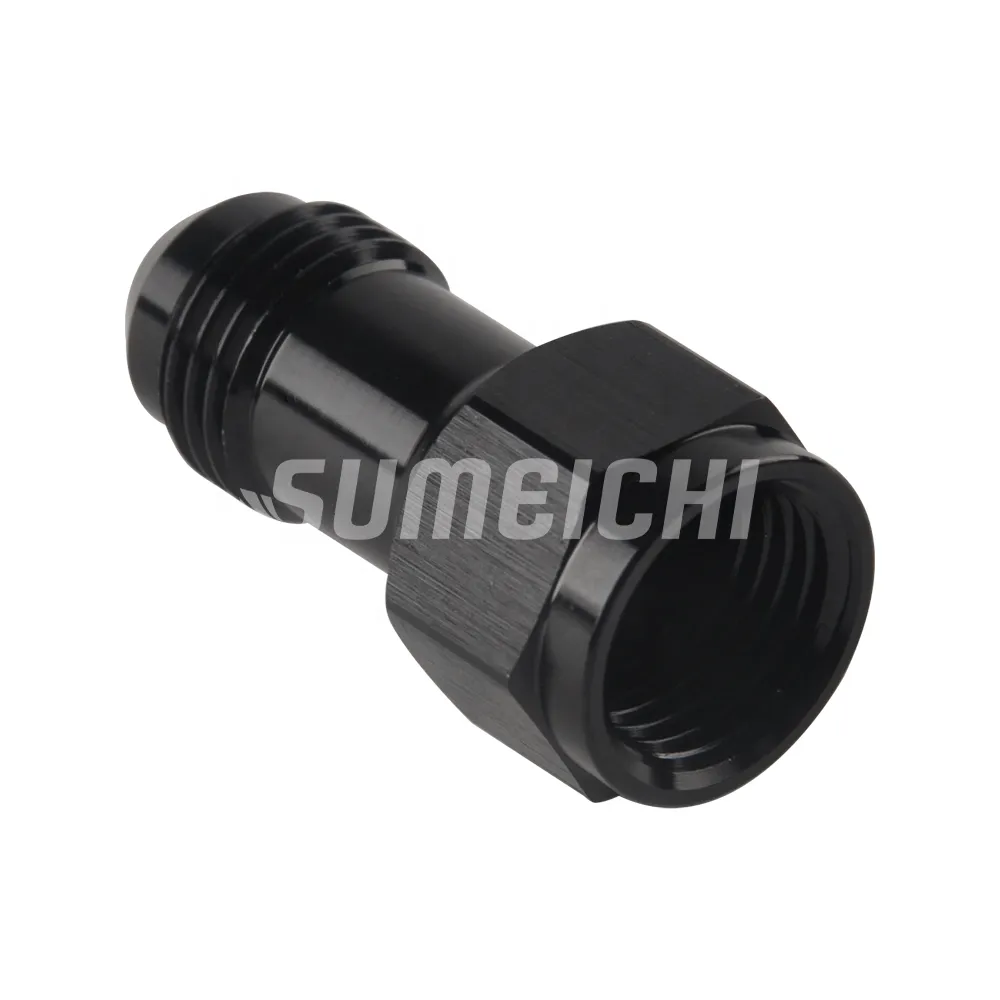

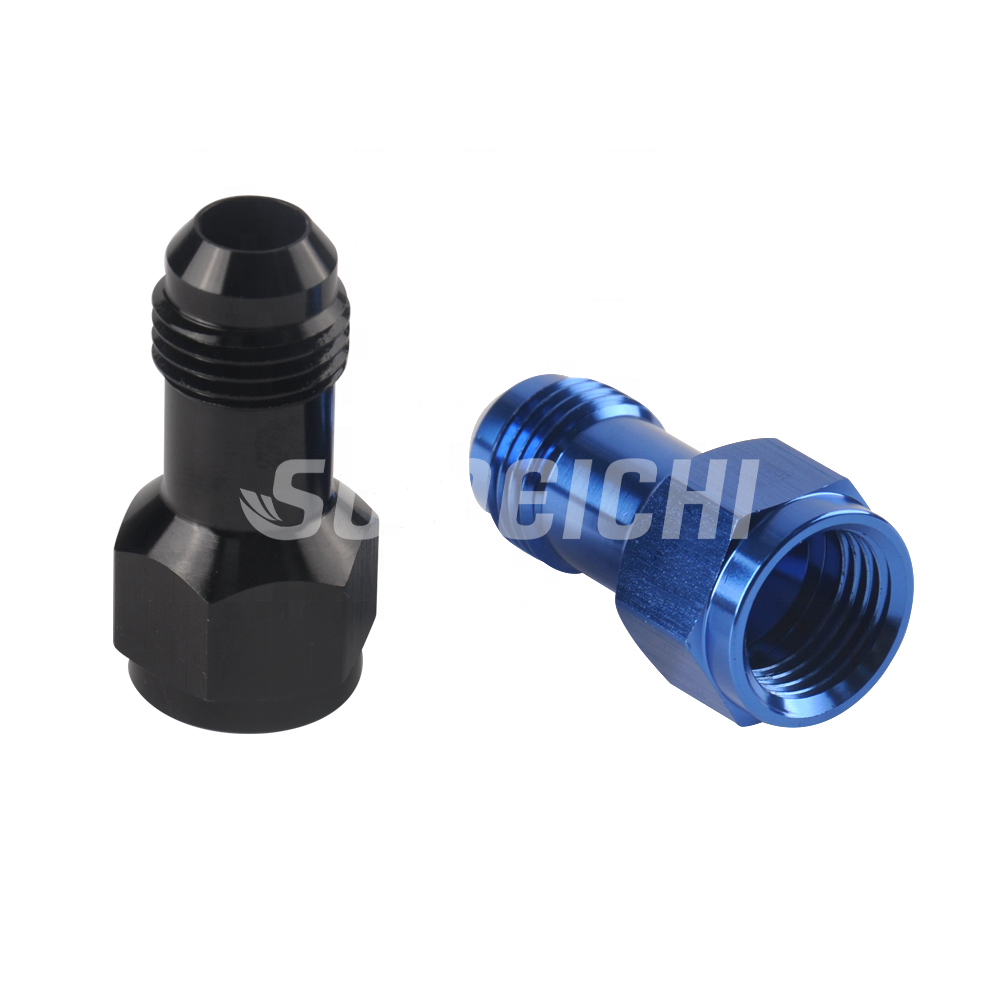

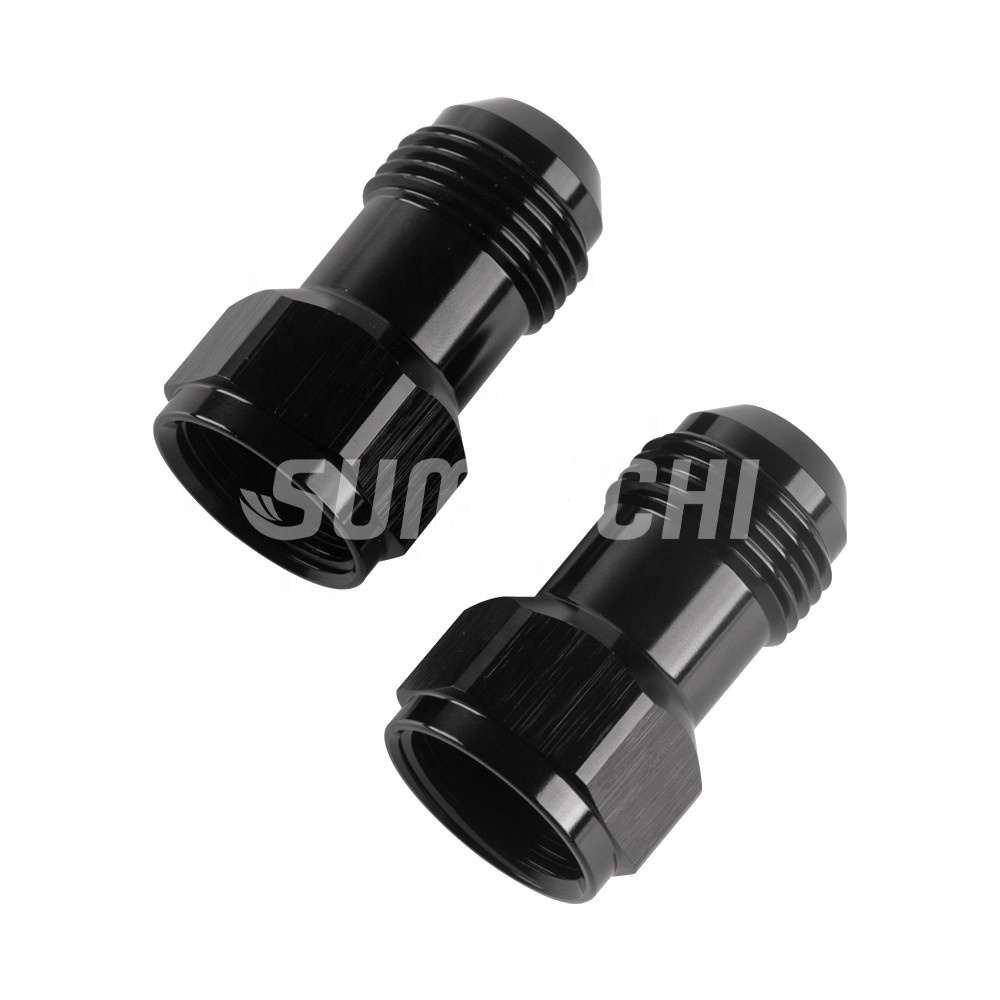

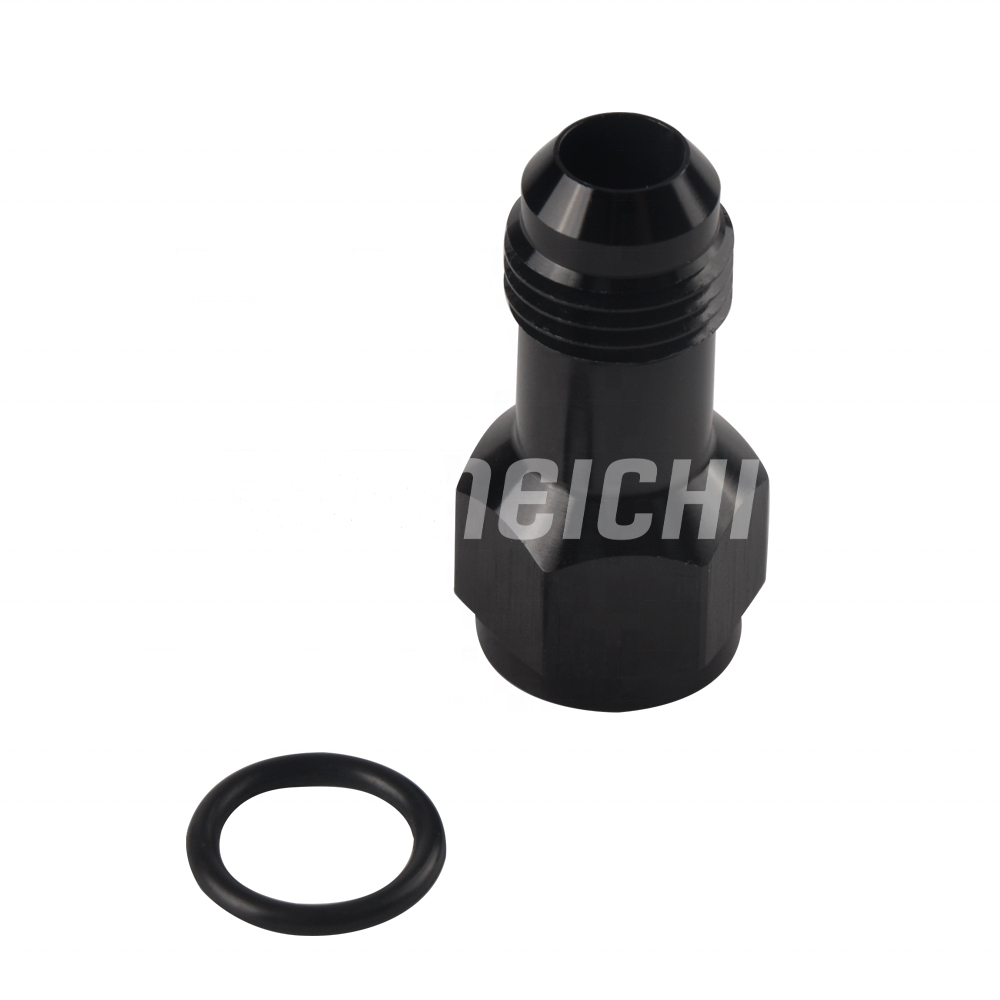

SUMEICHI Straight Male AN10 Fitting to ORB10 Female Reducer Adapter

Male AN10 Fitting to ORB10 Female Reducer Adapter

* Size: Full Length: The thread size of AN10 is 7/8-14 UNF.

* Sealing: The AN side of the flare is sealed by a 37 degree angle .

* Parameter: Max Working Pressure: 1500PSI. Working Temperature Range: -40°F to 250°F.

* Material: Made of aluminum alloy 6061-T6, anodized surface.

* Application: The extender fittings can provides different additional lengths.Widely used in fuel system,cooling system, etc.

PART NO.	ORB	AN
SMCAN952-03	Female ORB3	Male AN3
SMCAN952-04	Female ORB4	Male AN4
SMCAN952-06	Female ORB6	Male AN6
SMCAN952-08	Female ORB8	Male AN8
SMCAN952-10	Female ORB10	Male AN10
SMCAN952-12	Female ORB12	Male AN12
SMCAN952-16	Female ORB16	Male AN16
