AN6 Male to ORB8 Female Flare

SUMEICHI AN6 Male to ORB8 Female Flare Reducer Adapter

SMCAN950-08-06
AN6 male to ORB8 female: connects AN6 hose to ORB8 port, leak-proof, durable aluminum/steel. Ideal for fuel/oil/hydraulic systems. Reliable, corrosion-resistant, easy install.
minimum order
1 piece
Quantity:
US$1.82 - US$1.82 / piece
Contact Now
add to cart
 AN6 male to ORB8 female: connects AN6 hose to ORB8 port, leak-proof, durable aluminum/steel. Ideal for fuel/oil/hydraulic systems. Reliable, corrosion-resistant, easy install.
  • Pipe Class:Not Rated
  • Connectivity:Male
  • Pressure:High Pressure
  • Application:Automotive Repair
  • Surface Treatment:Anodized
  • Technic:CNC Machining
  • shape:Straight
  • System of Measurement:inch
  • head code:Hexagon
  • Mounting hole diameter:please contact for details
  • customized support:ODM, OEM
  • warranty:1 year
  • model number:SMCAN950-08-06
  • place of origin:Guangdong, China
  • brand name:SUMEICHI
  • Material:Aluminum
  • Application:Oil
  • MOQ:50 Pcs
  • Packing:Plastic Bag+Carton
  • Sample:Sample Freely
  • Advantage:High-quality
  • Brand:SUMEICHI
  • OEM:Provide OEM Services
  • Service:24 Hours Online
  • Standard:International Standard
  • Selling Units:Single item
  • Single volume:0 cm³
  • Single gross weight:0.0 kg

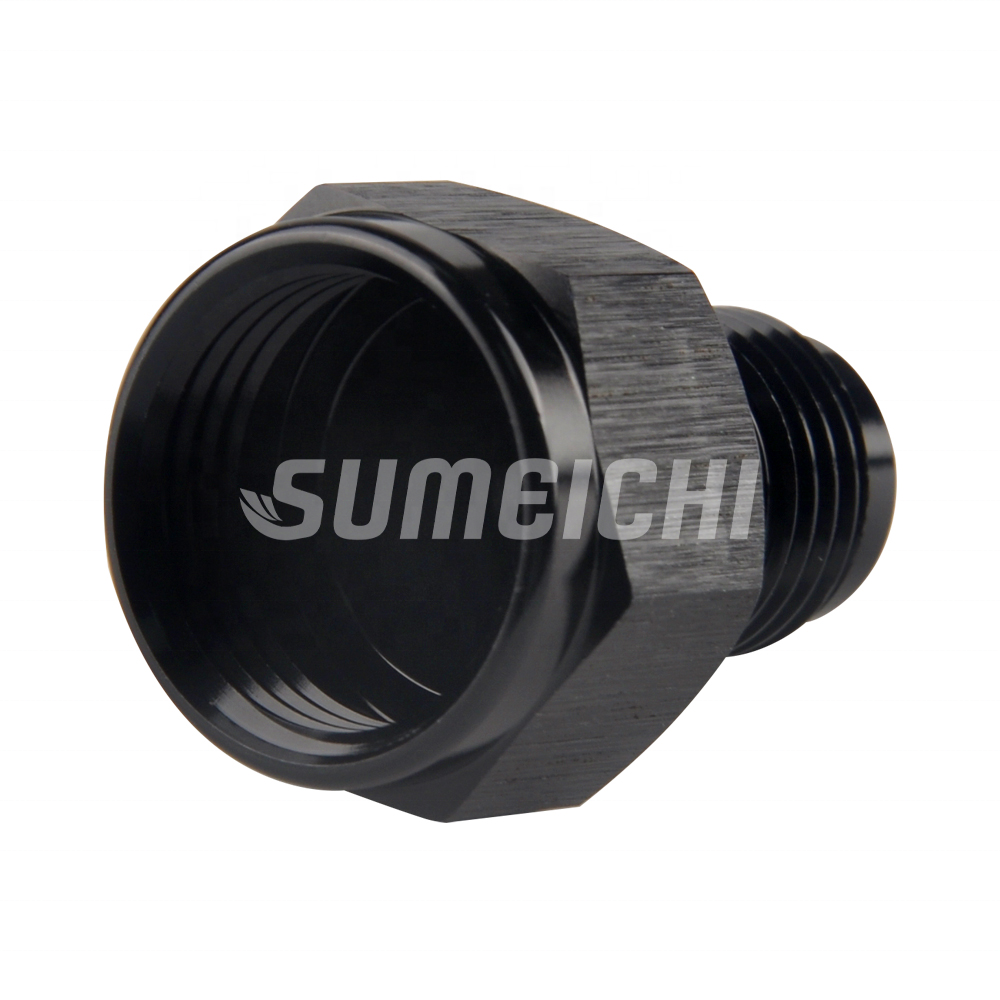

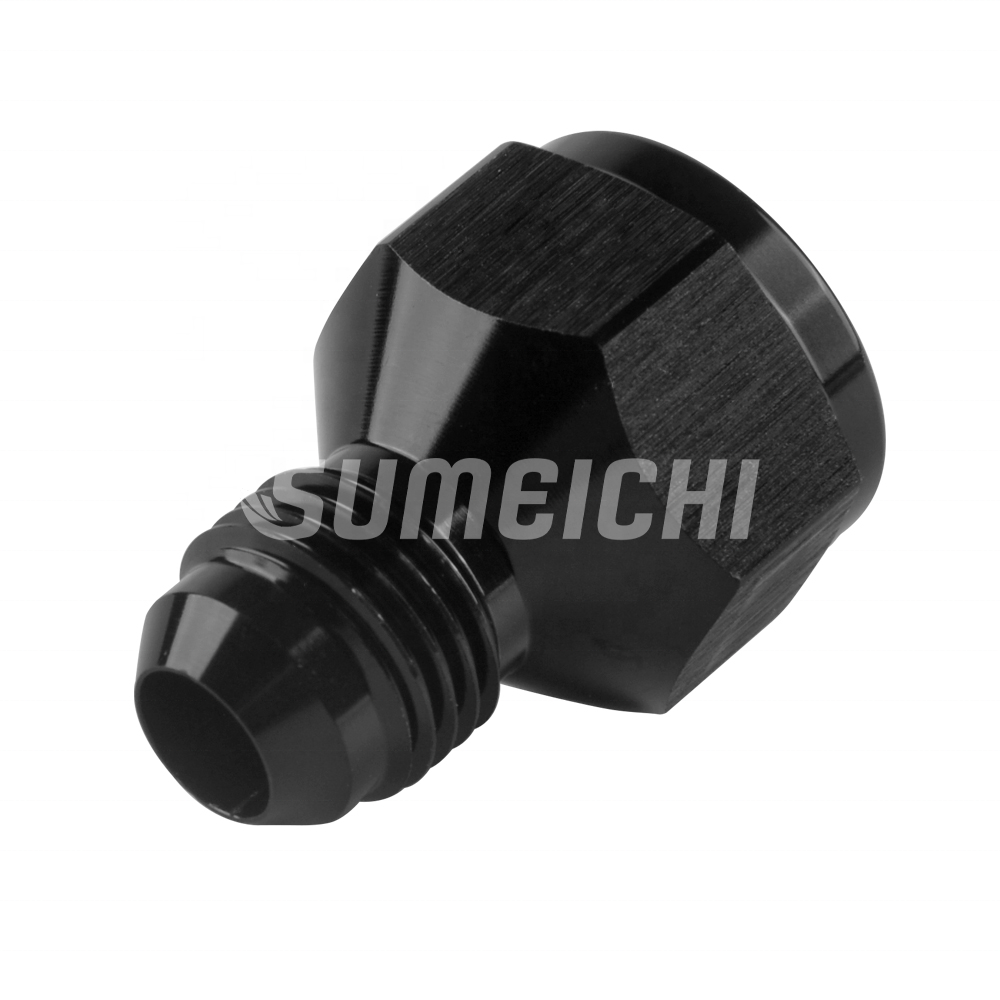

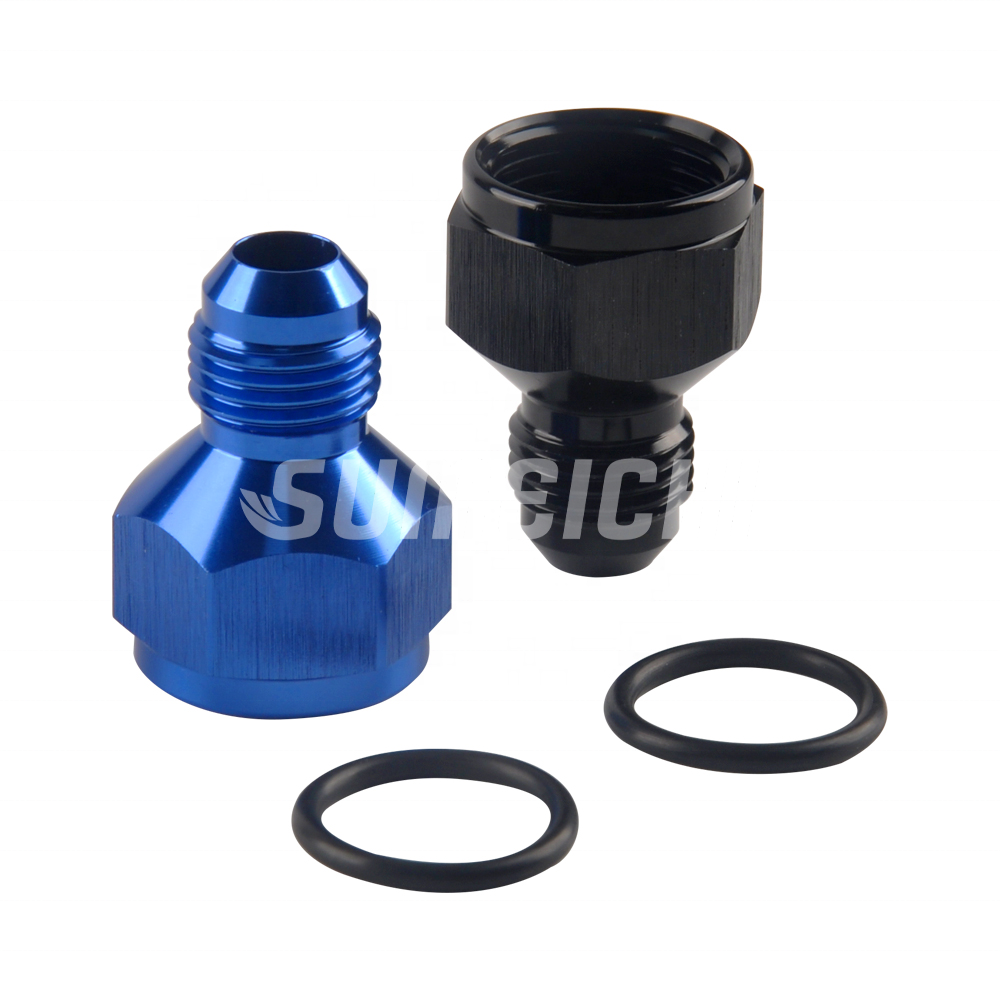

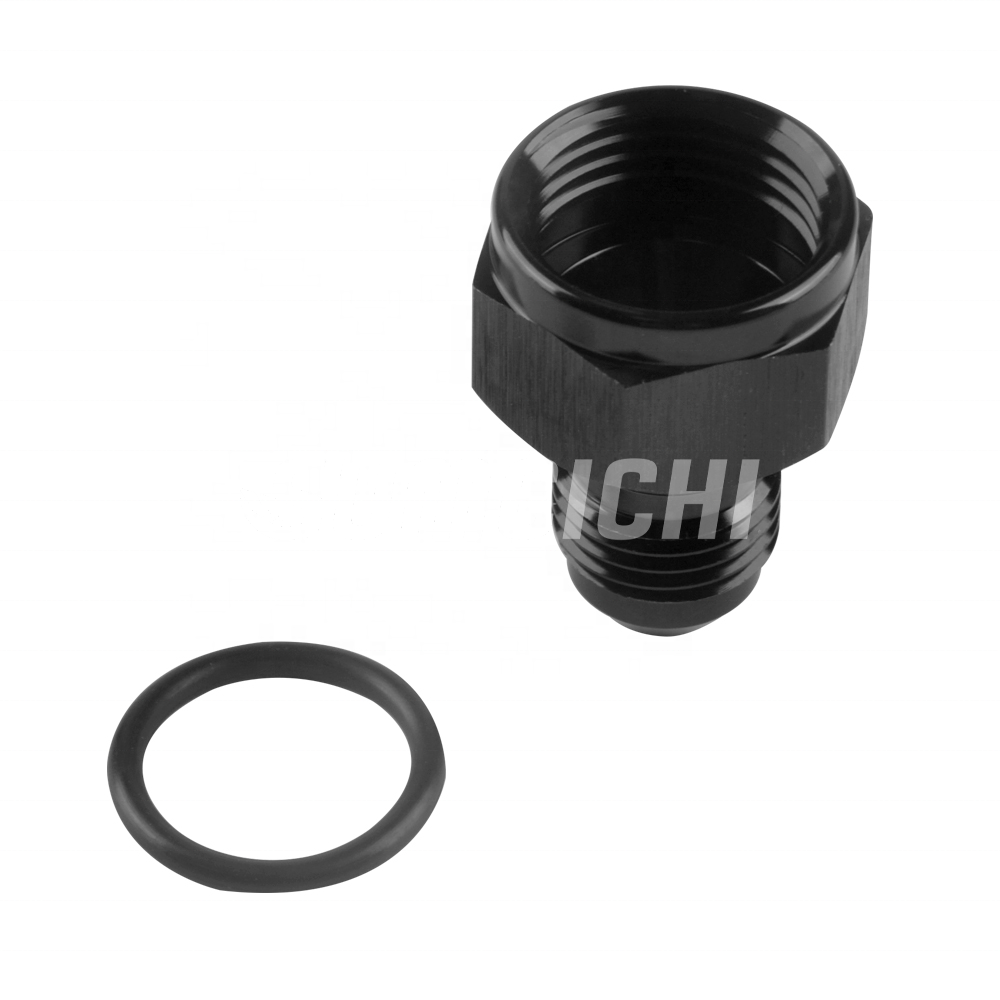

SUMEICHI AN6 Male to ORB8 Female Flare Reducer Adapter


AN6 Male to ORB8 Female Adapter
* Size: Female AN8 to Male AN6, the thread size of 8an is 3/4-16 UNF, the thread size of 6an is 9/16-18 UNF.
* Parameter: Max working pressure: 1500PSI.Temperature range: -40°F-250°F.
* Material: Made of aluminum alloy 6061-T6, anodized black surface.
* Sealing: The AN side is sealed by a 37 degree angle.
* Application: Widely used in fuel system, cooling system, LS swap etc.

PART
ORB(Female)
AN(Male)
SMCAN950-04-03
-4
-3
SMCAN950-06-03
-6
-3
SMCAN950-06-04
-6
-4
SMCAN950-08-06
-8
-6
SMCAN950-10-08
-10
-8
SMCAN950-10-06
-10
-6
SMCAN950-12-08
-12
-8
SMCAN950-12-10
-12
-10
SMCAN950-16-12
-16
-12










Q1: Are you factory?
Yes, we have about 20 years' experience in manufacturing, supporting OEM & ODM.

Q2: What's your normal MOQ?
Our moq is 50 pieces per item.

Q3: May I know the lead time?
We have large inventory in warehouse, so that we can ship the goods in 3 days for small order. As for mass order, the lead time is 10-20 days.

Q4: Can I get sample to test first?
Sure, we offer free sample for you to test, but the shipping cost is on your side.

Q5: Do you offer branding services?
Yes, lasering brand logo is free. If you need branding packages, the fee will be on your side.
